1000W PORTABLE OUTDOOR POWER BANK

Description:

portable outdoor power bank power pack AC output inverter new energy

HOT LINE:

+86-13927476268

Online

Product Details

1000W Multi-Port 220V AC Output Power Bank

MODEL #：POB1000800
TYPE：1000W/12V-220V

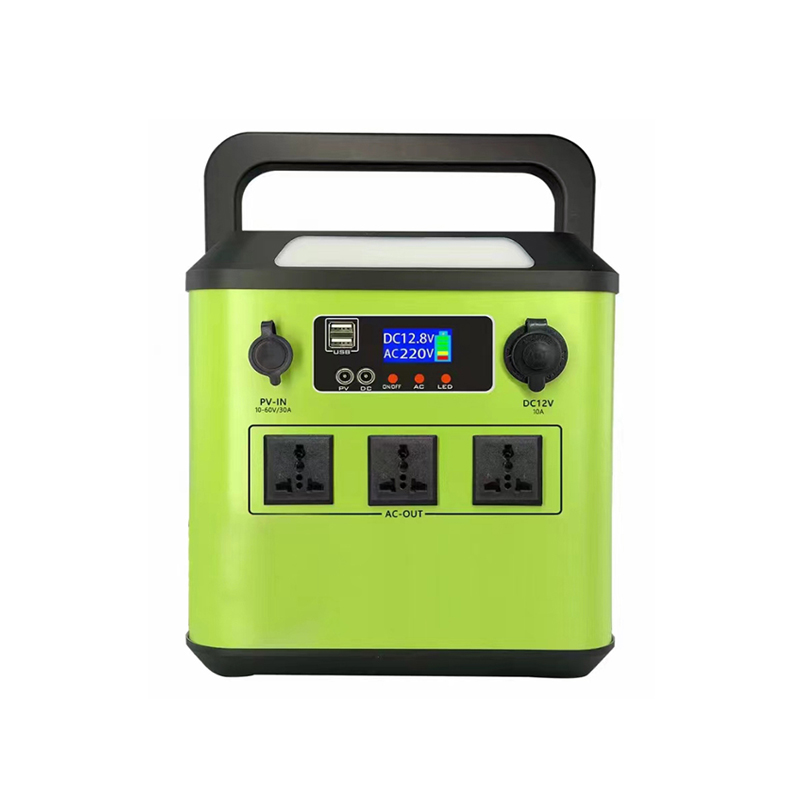

PRODUCT PHOTO：











PRODUCT DETAILS:

1,Product Parameters

Name	Description	Parameters
PV-SOLAR ENERGY	Solar charging voltage	MPPT12-60V
PV-SOLAR ENERGY	Charing current	30A(360W)
INTPUT	DC Input voltage	14.6V10A
INTPUT	DC Input power	146W
AC OUT 220V	AC Output voltage	AC220V*3
	AC output power	1000W
	AC output over-power protection	1050W
	AC output wave	Pure sine wave
	AC output max	2000W
	Frequency	50HZ
Hz	USB1 Output	5V/3A Max output power:15W
Hz	USB2 Output	5V/3A Max output power:15W
DC12V Output	DC1 DC2 Output	12V5A*2
Battery Cells	Type	Brand new Lithium iron phosphate battery
	Volume	62.0AH/12.8V
	Power	793.6WH
	Cycling life	2000 times
Charging paramters	14.6V	10A
Charing time	5-6 hours	Charge from 0% to 99% (automatic cut-off)
Full voltage	14.6V	The voltage at which the battery is charged to the automatic cut-off point
LCD Display screen	Display battery level, charging, stopping charging status	Dynamic display of battery level
LCD Display screen	LED、AC Inverter status	Display on screen
Static startup		﹤8-10W
Protection		Short circuit, overload, over temperature, over voltage, over current, under voltage, etc
Over-heating	Over-heating protection	≥85℃
Over-heating	Over-heating recovery	≤70℃


2,2. Discharge Time
Device in use	Device power	Discharge time
Electric tools & appliances	400w	About 1.5-2 hours
Mobile Phone	4000mAh	About 40 times
W-filament Bulb	100W	About 7-8 hours
Household fan	75W	About 10-11 hours
Laptops	35W	About 20-21 hours

Note: The above equipment testing usage duration is for reference only, and the usage duration may vary depending on the product.



3, Lithium-iron phosphate protection board features

Name	Parameter Symbol	Details	Standard value
Over charge protection	V_CU	Over-charge detection voltage	14.6±0.025V
Over charge protection	V_CL	Over-charge release voltage	14.2±0.025V
Over discharge protection	V_DL	Over-discharge detection voltage	10.2±0.08V
	V_DR	Over-discharge release voltage	11.5±0.08V
		Over-current /over-load protection	80A
		Protection release conditions	Disconnect load/slave start switch
Over heating protection		Over-heating protection	≥60℃
Over heating protection		Over-heating recovery	Charging activation after ≤ 50 ℃
Short-circuit protection		Short-circuit protection conditions	External short-circuit protection
Short-circuit protection		Short-circuit protection release conditions	Disconnect short-circuit load or activate charging
Internal resistance	R_DS	Main circuit on-state resistance	R_DS≤60mΩ
Consumption current	I_DD	Internal consumption of circuit in work	10uA Type 30uA Type

4, Product reliability test

No.	Item	Inspection standards	Inspection result
1	Constant temperature and constant humidity test	Place the fully charged power supply in a temperature control box at 40 ℃± 5 ℃ and a relative humidity of 90% to 95% for 12 hours. After removal, place it in an ambient temperature of 25 ℃± 5 ℃ for 2 hours before testing the product's performance.	OK
2	High temperature (Discharge) test	Place the fully charged power supply into a cabinet at 40 ℃± 5 ℃ and humidity of 90% to 95% for 12 hours. Then place it in an ambient temperature of 25 ℃± 5 ℃ for 2 hours before testing the product's performance.	OK
3	Low-temperature (discharge) test	Place full-charged power supply into -10℃±5℃ temperature control box for 2 hours and test	OK
4	High-temperature (charge) Test	Place the discharged power supply into 40 ℃± 5 ℃ cabinet for 2 hours.Next,lay it under 25 ℃± 5 ℃ for 2 hours before testing the performance of the product.	OK
5	Low-temperature (charge) test	Place the discharged power supply into -10℃± 5 ℃ cabinet for 2 hours. Next, lay it under 25 ℃± 5 ℃ for 2 hours before testing the performance of the product.	OK
6	Vibration test	Harmonic vibration at frequency 100Hz for at least 10 minutes.Test product performance after the vibration experiment.	OK
7	Drop test	Drop the product freely from a height of 1.5 meters to a thickness of 18-20mm on a hardwood board (drop once in the X, Y, and Z directions respectively), ensuring that the shell does not crack. After the experiment, test the product's performance.	OK
8	ESD test	Contact discharge: 0.5KV, 10 seconds, once every 1 second, 10 seconds. After the experiment, the product performance will be tested.	OK

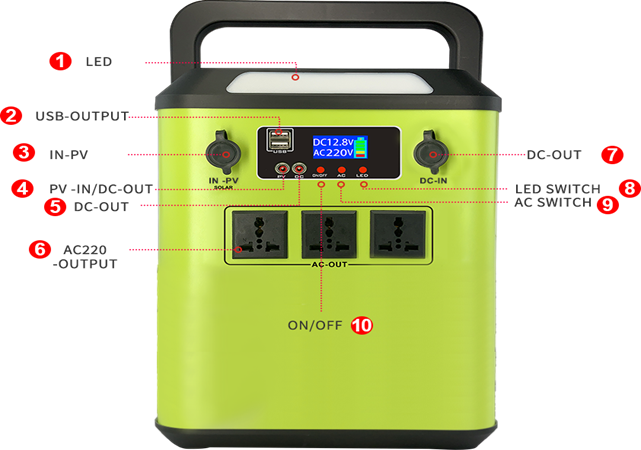

Port Serial No.	Port Status	Quantity
1	LED	1
1	(Illumination）	1
2	USB-0UTPUT	2
2	(Output)	2
3	IN-PV	1
3	(18V Solar charger input)	1
4	PV-IN/DC-OUT	1
4	(DC14.6V/5A(DC5521) Mains charging input	1
5	DC-OUT	1
5	(DC12V/5A(DC5521) Output	1
6	AC220-OUTPUT	3
6	(220v AC Output)	3
7	DC-OUT	1
7	(Car charging 12V)	1
8	LED SWITCH	1
8	(Illumination switch)	1
9	AC SWITCH	1
9	(AC switch)	1
10	ON/OFF	1
10	(System switch)	1


5. PANEL FEATURES


















6.Operation guide

6.0 Buttons explanations
Press the main switch for 2 seconds to turn on system and wireless charging (optional).Press again for 2 seconds to turn off entire output.
Press LED switch for 2 seconds to turn on/off LED light.
Press AC switch for 2 seconds to turn on/off inverter output.
6.1.1 2 USB Output
6.1.2. Press LED button to turn on LED light.
6.1.3. Turn off the power switch once abnormal operation is found. And check the device if it is abnormal.
6.1.4. Remove the device power plug after use, turn off the power switch.
6.1.5. When the battery voltage approaches the protection voltage or reaches the low voltage protection, turn off the output of the entire machine.

6.2.0 3 AC 220V/1000W Output.
6.2.1 AC output starts when turning on the AC switch.
6.2.2 Display screen shows 220V symbol when the AC output is working in order.
6.2.3 Turn off the 220V switch when AC output is abnormal.
6.2.4 Check the rated power of devices to use. Ensure it is within 1000W for the AC ports.(Data of this device is resistive load. Inductive load should not exceed 50% of the entire load. Serious damage due to incorrect operation is not covered by the warranty.)
6.2.5 After connecting the charger to the host, plug it into a 220V mains outlet to charge it.
6.2.6 When operation is abnormal, please turn off power switch and check if the use of the digital product is abnormal.
6.2.7 After use, please unplug the connected devices and turn off the main switch.
6.3 Low-voltage protection of battery.
6.3.1 When voltage becomes insufficient,the LCD screen shows battery blank. Please turn off output and charge the device.
6.3.2 This machine is equipped with a GX20 photovoltaic high current 10A port, with 1 positive pole and 2 negative poles. Reverse connection is strictly prohibited, and damage caused by reverse connection is not covered by the warranty.
6.3.3 When using 220V output external circuits, it is strictly prohibited to directly connect to the power grid or other 220V circuits. Damage is not covered by the warranty.


7,PRODUCT DIMENSIONS.
OVERALL DIMENSION OF THE DEVICE (MAX), UNIT: MM.
280160340MM

8,LIST INSIDE.
ITEM CODE	ITEM NAME	SPECIFICATIONS	USAGE
1	HOST	POB1000800	1PC
2	USER GUIDE	User manual	1PC
3	PACKING	Carton box	1PC
4	CHARGER	14.6V10A	1PC
5	CONNECTOR	GX20 (1 positive, 2 negative)	1PC

9.PACKING品包装说明
9.1PACKING QUANTITY:1PCS EACH BOX
9.2PACKING BOX DIMENSION:330240550MM
9.3PACKING WEIGHT:12.5KG EACH BOX

10.PRECAUTION OF DEVICE OPERATION.
10.1 Please be strict to the manual guide when using this device.
10.2 A 5cm space is reserved around the product to facilitate heat dissipation and convection.
10.3 The device would automatically activate protection function to turn off output in case device's battery level is low,or load power exceeds rated power,or environmental temperature is too high.
10.4 It is recommended to charge without load while charing with this power supply.
10.5 Leaving the device unused for a long time can lead to battery depletion. Please charge it every 3 months at least.
10.6 When using AC loads,AC loads smaller than this device's rated power are working normally.Some electric equipments such as Motor devices would have a starting power greater than the rated power.Energy-saving lamps' starting power would be tens times its rated power.If their starting power is greater than the peak power of this device,over-current/over-load protection function would be activated automatically to turn off output.
10.7 It is prohibited to use this product in flammable, explosive, and corrosive gas environments such as gasoline and gas.
10.8 In case of water inlet or substances intrusion into this device,please contact dealer or factory for test and handling.

11.EASY TROUBLESHOOTING
11.1 When there is no AC output when starting up, check if the battery level display screen is displayed. If it is not displayed, try charging the product for 1-2 minutes to activate the product.
11.2 When there is no DC output during startup, check if there are any issues with the use of digital products and connecting cables.

12.ALERTS OR CAUTIONS WHILE IN USE
12.1 Do not put the product into water!
12.2 Do not heat the product or approach a fire.
12.3 Do not disassemble or modify the product without authorization!
12.4 Do not crack the product.
